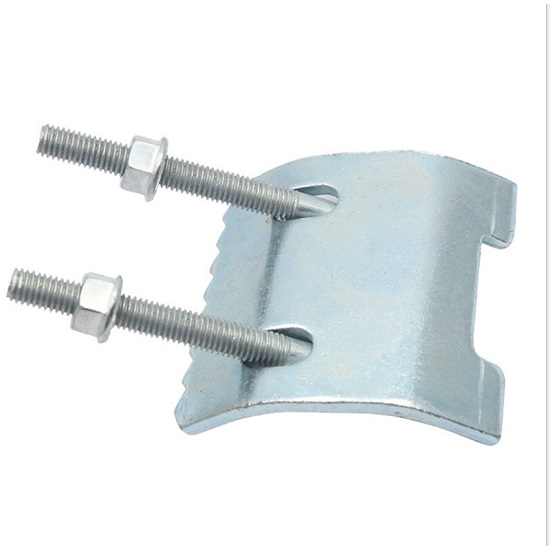

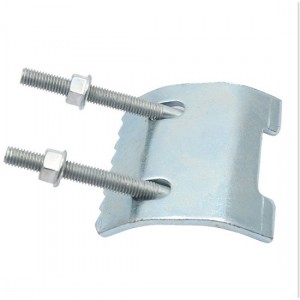

Qinkai Strut Beam Clamp U Bolt Clamp with Bracket

Short Description:

U Bolt Bracket are manufactured to suit a wide variety of applications and reduce on site installation costs by eliminating the need to drill structures in most circumstances.

All U Shaped Pipe Clamp including fasteners are fully galvanised or srainless steel to produce heavy duty protection in most conditions.

The beam clamp load ratings have been derived from actual test results conducted by a CE certified. A minimum safety factor of 2 has been applied.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

U bolt clamps are widely ustainless steel 304 316 Marine boat u boltsed, mainly for construction and installation, mechanical parts connection, vehicles and ships, Bridges, tunnels and railways, etc.Main shapes: semicircle, square right Angle, triangle, oblique triangle, etc.

Use to support and secure 12-Gauge and 14-Gauge channels up to 2,150 lbs. load ratings based on bottom hole of beam clamp

Square shaped U-bolts with hex nuts and a metal plate designed to hold channel beams in a strut assembly.

Used to secure conduit and other hardware to beam

Specifications For U Bolt Square U Type Bolt

1.Supply to USA,Europe,Austrilia,and Middle East, etc

2.Matrial: Carbon Steel/Stainless Steel U Bolt Square U Type Bolt

3.Professional Perfomance Fasteners supplier

4.High Strength U Bolt Square U Type Bolt

Parameter

Qinkai Strut Beam Clamp parameter

Material	Carbon steel, Stainless steel, Aluminum, Copper, Brass, Galvinized etc.
Process	Stamping, Laser cutting, Bending, Welding, Assemble
Surface Treatment	Electro plating, Power coating, Oxide, Anodization, Hot dip galvanized, Heat treatment etc.
Drawing format	PDF/3D/CAD/DWG/STEP or samples
Color	As customers' requirements
Service	OEM sheet metal fabrication services
Tolerance	+/-0.02mm ~ +/-0.1mm
Quality control	Caliper, Micrometer, Hardness tester, Three coordinates etc.
Application	Curtain wall Bracket connector, Trucks, and other industry areas
Material	Carbon steel, Stainless steel, Aluminum, Copper, Brass, Galvinized etc.
Process	Stamping, Laser cutting, Bending, Welding, Assemble
Surface Treatment	Electro plating, Power coating, Oxide, Anodization, Hot dip galvanized, Heat treatment etc.
Drawing format	PDF/3D/CAD/DWG/STEP or samples

Size

Dimension	Size A	B	C	D
(mm)	(mm)	(mm)	(mm)	(mm)
M4*60	20	25	60	4
M5*60	20	25	60	5
M6*60	27	25	60	6
M6*70	27	35	70	6
M6*80	30	45	80	6
M6*90	30	50	90	6
M8*64	27	30	64	8
M8*70	27	50	70	8
M8*80	32	40	80	8
M8*100	32	50	100	8
M10*90	35	40	90	10
M10*130	40	80	130	10
M12*150	45	90	150	12
