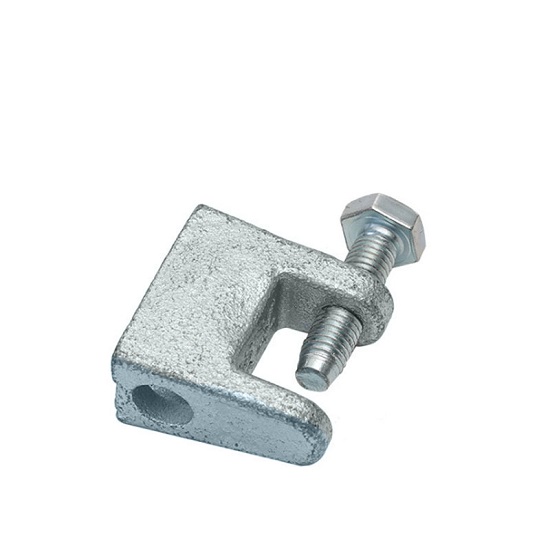

Qinkai Beam Clamp with threaded rod for ceiling systems

Short Description:

Beam Clamps are manufactured to suit a wide variety of applications and reduce on site installation costs by eliminating the need to drill structures in most circumstances.

All beam clamps including fasteners are fully galvanised to produce heavy duty protection in most conditions.

The beam clamp load ratings have been derived from actual test results conducted by a NATA certified laboratory. A minimum safety factor of 2 has been applied.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

Pipe suspension / hangering clamps -Beam clamps

Design for pipe/tube fixing inside building

Applied standard: BS3974

Materials: Carbon steel, stainless steel, ductile/cast iron

Surface: Hot dip galvanized, electric galvanized, epoxy,dacromet

Rod Size: M10 & M12

OPEN: 18,20,25,35,45

Special specs. available upon request

With DIN 933 Hexagon Head Bolt Fastener Beam Clamps M6 M8 M10

Universal beam clamp has steel construction and electro-galvanized finish.

Beam Clamps with the strength of best price, high quality, fast delivery and perfect service.

Our goods have already been exported to Europe, Middle East, Australia, etc.

Application

1.Extremely high wear resistance.2.Extremely high impact resistance

3.Good self-lubrication, better than steel and brass appended lubricating oil.

4. Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.

5.Extremely high-inadhesion resistance, the surface of product hardly affixes other material.

6.Good low temperature resistance, in liquefied nitrogen (- 196), it still has a long-term impact.Hardly materials can reach to this performance of materials.

We need more detail as follow. This will allow us to give you an accurate quotation.

Before offer the price，get the quote simply by completing and submitting the form below:

• Product:__

• Measure: _______(Inside Diameter) x_______(Outside Diameter)x_______(Thickness)

• Order Quantity: _________________pcs

• Surface treatment: _________________

• Material: _________________

• When do you need it by? __________________

• Where to Shipping: _______________ (Country with postal code please)

• Email your drawing ( jpeg, png or pdf, word) with minimum 300 dpi resolution for good clarity.

Pipe suspension / hangering clamps -Beam clamps

Parameter

Qinkai Beam Clamp parameter

Material	Metal, Malleable Iron with zinc plated
Standard or Nonstandard	Standard
Product name	1/2" Galvanized Beam Clamp
Size	1/4" 3/8" 1/2"
Throat Size	3/4" 1-1/4"
Application	Secure horizontal pipe lengths to the top or bottom of an I-beam
Surface treatment	Electro Galvanized /Epoxy Coated

Size

Trade Size	Load Rating	Master QTY	Dim A( mm )	Dim B( mm )
M8	1200 LBS	100	19.3	20
M10	2500 LBS	100	20.4	23
M12	3500 LBS	100	26.6	27
1"	250 LBS	100	1000	1250
2"	750 LBS	50	2000	2000
2-1/2"	1250 LBS	30	2500	2375
