Qinkai Ladder Type Cable Tray Custom Size Cable Ladder

Short Description:

Qinkai Cable Ladder is an economical wire management system designed to support and protect wires and cables. Cable ladders can be used for a variety of indoor and outdoor applications.
Ladder type cable trays are designed to carry heavier cable loads than standard perforated cable trays. This product group is easy to apply vertically. On the other hand, the form of cable ladder provides nature.
The standard finish of Qinkai cable ladder is as follows, which can be customized according to different widths and load depths. It is suitable for various applications, including main service entrance, main power feeder, branch line, instrument and communication cable..,

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

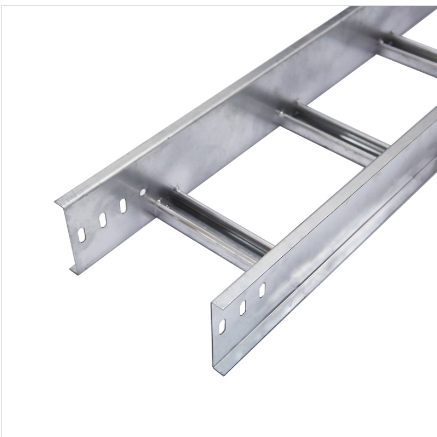

Qinkai Ladder type cable tray is composed of two longitudinal side members, connected by separate transverse members, and provides solid side rail protection and system strength through smooth radius fittings and a wide range of materials and finishes.

Available materials: aluminum, galvanized steel, HDG steel and stainless steel. Cable tray rungs are spaced 6 ", 9", 12 "and 18" apart and have a load depth of 3 "to 9".

Qinkai cable tray has passed ISO 9001, CE, NEMA certification, and is approved for nuclear applications, typically for applications with medium to long support spans ranging from 12 feet to 40 feet, and for power or control cable support systems.

If you have list, please send your inqiury to us

Application

Qinkai cable ladder can maintain all types of cables, such as different types of flame retardant cables

ZA (Class A flame retardant)

ZB (Class B flame retardant)

ZC (Class C flame retardant)

NH fire-resistant cable

Benefits

• Combines ruggedness and ladders, but provides additional support to ensure that cables are strong and uniform

• Prevent dust, water or falling debris

• Adequate ventilation to ensure that the heat generated in the cable conductor is effectively dissipated without moisture accumulation

• Easy access to cables from top or bottom

• Maximum protection against electromagnetic or radio frequency interference

• Protect and shield sensitive circuits

Support advantages:

·From light load to heavy load ·Good lateral stability · no annoying sharp edges ·Open profiles provide better corrosion protection ·Weight reduction, no looseness in strength

Parameter

Qinkai Cable ladder parameter

Model No.	Qinkai cable ladder	Width	50mm-1200mm
Side Rail Height	25mm -300mm or According to Requirements	Length	1m-6m or According to Requirements
Thickness	0.8mm-3mm According to Requirements	Materials	Carbon Steel, Aluminum,Stainless Steel,Fiber glass
Surface Finished	Pre-Gal,Electro-Gal,HDG,Power Coated,Paint,matt,anodizing,satt,polished or other surface you need	Max.Working Load	100-800kgs, According to Size
MOQ	for Standard Size, Available for All Quantity	Supply Ability	250 000 meters Per Month
Lead Time	10-60 Days according to quantities	Specification	according to your needs
Sample	avialable	Transport Package	bulk,carton,pallet,wooden boxes,According to Requirements
