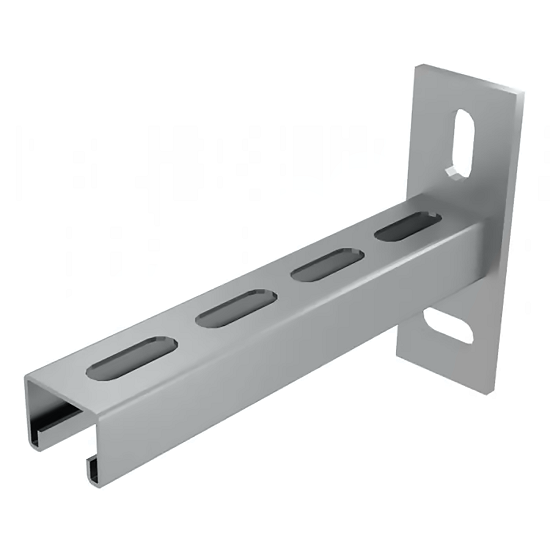

Qinkai Channel Cantilever Bracket For Seismic Systems

Short Description:

150mm through to 900mm long cantilever using QK1000 41x41mm channel/strut.

Cantilever Brackets are manufactured to complement the range of cable support systems.

Fully galvanised after fabrication to provide heavy duty protection in most conditions.

Can also be manufactured in stainless steel grade 316 for use in extremely corrosive environments.

Fibreglass brackets available upon request.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

Advangtages of Qinkai Channel Cantilever Bracket

1. To make construction easier and more convenient, saving time and labor cost

2. We do OEM for all kinds of steel brackets according to clinets' design.

3. Different kinds of fittings can set up many different combinations

4. Great concentrate Loading capacity

5, Brackets are manufactured from Q235 steel with galvanized finish or epoxy coating. Wall thickness is 2.5mm. Wall thickness can be 2.0mm and 1.5mm for light hanging system, for beam load capacity, use 80% and 60% of appropriate load chart separately.

6, Holes or slots are available on base plate on orders.

Application

Qinkai Channel Cantilever Bracket is used to mount, brace, support, and connect lightweight structural loads in building construction.Such as-Cable tray support system -Fire fighting systems -Solar panel installations -Structural framing -Hvac-piping and ducting installations ,pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut

channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment

racks, etc. Specially made sockets are available to tighten nuts; bolts etc. inside

Specification

1.Material:Carbon Steel,Stainless Steel

2.Thickness:12Ga(2.5mm)/14Ga(1.8mm)/16Ga(1.6mm) etc

3.Surface Treatment:Powder Coating/Electrical Galvanized/Hot Dip Galvanized

4.Base Plate Size:150x50x8mm or 120x45x6mm or others

5.Channel Size:41x21 or 41x41 or 41x62 etc

6.Channel length:150mm/200mm/300mm/450mm/550mm/600mm/650mm Etc,We can produce according to customers' requirements

Parameter

Qinkai Channel Cantilever Bracket parameter

Europe Markets(Spanish , France, Poland etc) Standard:

With	Height	Length	Thickness
27mm	18mm	200mm-600mm	1.25mm
28mm	30mm	200mm-900mm	1.75mm
38mm	40mm	200mm-950mm	2.0 mm
41mm	41mm	300mm-750mm	2.5 mm
41mm	62mm	500mm-900mm	2.5 mm

Asia(China , Singapore, Malasia etc)Standard:

Width	Height	Length	Thickness
41mm	21mm	150mm-500mm	1.5mm 2.0mm 2.5mm
41mm (double)	21mm	150mm-500mm	1.5mm 2.0mm 2.5mm
41mm	41mm	150mm-1000mm	1.5mm 2.0mm 2.5mm
41mm (double)	41mm	150mm-1000mm	1.5mm 2.0mm 2.5mm
41mm	21mm	150mm-500mm	1.5mm 2.0mm 2.5mm
41mm	41mm	150mm-600mm	1.5mm 2.0mm 2.5mm
