Qinkai Solar Mount Racking System Mini Rail Roof mounting systems

Short Description:

Qinkai Solar Mount Racking System

Solar Metal Roof Mounting Structure is designed for solar installation on trapezoidal color steel metal roof.
With mini-rail design, the system still delivers firm and stable fixation between metal roof and solar.As a cost-effective mounting solution, the mini-rail kit greatly reduces overall project cost.

It allows solar panel orientation with landscape or portrait,flexible on roof installation.

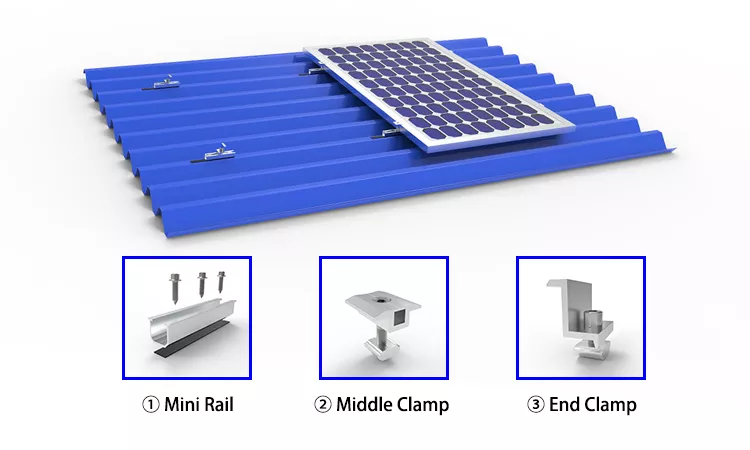

It comes with few solar mounting components like mid clamp, end clamp,and mini rail,very easy to install.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

1. Aluminum Rails for solar panels , its is light weight and cheap, can be used on various hooks and fixtures.

2. Fasten Solar PV Mounting Rails is in good quality with cost-effective solar rails price.

3. Solar Rails is very suitable for installation on rooftop/Ground /Carport/ Agriculture.

4. Many solutions to meet different customers` requirements.

5. High strength, Anti-UV, high frequency insulation.

6. Anti-Corrosive, Chemical Resistance& Weatherability.

7. Customized length: 1000mm, 2100mm, 3100mm, 4000mm, 4100mm, 4200mm and can be customized.

Application

Solar photovoltaic metal roof clamp rail-less roof mounting clamps MR09-14 is a rail-less metal roof racking system designed for Trapezoidal metal roof. The roof clamp can suitable for different tilt angle of Trapezoidal. This system only including the mini rail, mid clamp and end clamp or end clamp will be pre-assembled with the roof clamp.

The material of it is Aluminum 6005-T5 which makes the system a good performance at corrosion and EPDM washer has a good anti-seepage performance. Also, the high quality of Aluminum allows 15 years of warranty and 25 years of service life. Moreover, it is easy for packing and transportation because of its simple design.

Please send us your list

Please provide carport solar rack as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Our design team will help you make the most suitable solution.

Parameter

Qinkai Mini Rail Roof mounting systems parameter

Mount Type	Short rails for a solar trapezoid roof install
Installation Site	Tin roofs
Application	Framed solar panel for any size
Structural materials	aluminum, stainless steel
Survival wind speed	Up to130mph(60m/s)
Design snow pressure	Up to 30psf(1.4KN/m2)
Inclination	0 degree (the same angle as roof)
Panel direction	vertical or landscape
Design Standards	CE&ISO
Warranty	Design Life for 25 years, quality assurance for 10 years
