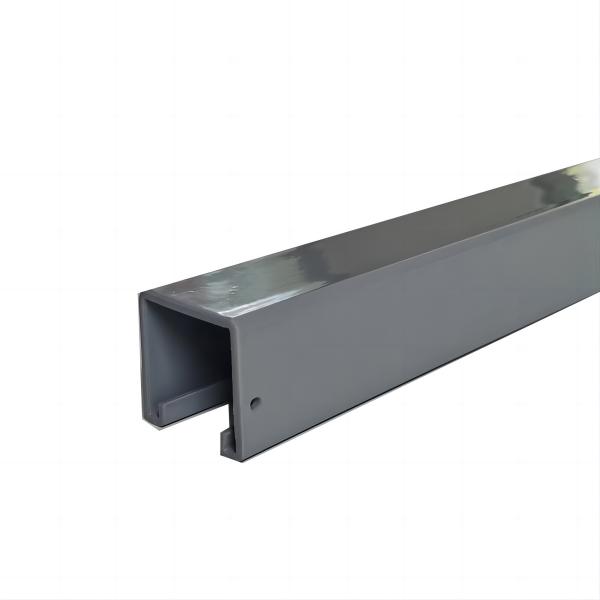

Qinkai Plain Steel Solid Strut Channel/Section Steel

Short Description:

Channel/Strut section is manufactured from strip steel to the following AS standards:

Mild Steel & Hot Dip Galvanised to AS/NZS1365, AS1594, AS/NZS4680, ISO1461
Pre-Galvanised to AS1397
Stainless Steel to AS1449, AS2837

Technical Details

The load values shown are in accordance with AS/NZS4600:1996, using a minimum yield stress for Fy of 210 MPa on plain channel/strut.

The published results are based on a uniformly loaded, simply supported span.

Deflection has been calculated using standard formulae at the maximum permissible stress.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

Qinkai C/U UNISTRUT CHANNEL/SECTION STEEL is constructed of precision engineered, high quality and is the result of decades of research gained from the installation of hundreds of framing projects across the globe.

Our c channel is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for solar project, house building purline, and anywhere there needs the framing and support. unistrut channel.

Application

According to the number of Plain Steel Solid Strut Channel/Section Steel, it can be divided into single Plain Steel Solid Strut Channel/Section Steel and back-to-back Plain Steel Solid Strut Channel/Section Steel.

As for the fittings, a complement of accessories and brackets used for wire mesh installation are also provided. See our catalogue unpon request.

Benefits

Our Plain Steel Solid Strut Channel/Section Steel is alailable in depths of 25-150mm, and in a variaty of widths, ranging from 30-1000mm. The standard finish is electroplared zinc after fabrication. A variaty of other finishes available are including hot dipped galvanized after fabrication, pre-galvanized as well as multitude of colors in powder coating. The Plain Steel Solid Strut Channel/Section Steel is also available in type 304 and 316 stainless steels for extremely corrosive enviroments.

Parameter

Qinkai Single Plain Steel Solid Strut Channel/Section Steel parameter

Single Plain Steel Solid Strut Channel/Section Steel
CAT#	SIZE (mm)	THICKNESS (mm)
QK3300	41*21	0.9-2.7
QK1000	41*41	0.9-2.7
QK5500	41*62	0.9-2.7
QK6500	41*82	0.9-2.7
Standard Channel lengths are 3 mtrs or 6 mtrs. Cut to channel lengths can be supplied on request. And specification can be customized

Qinkai Back-to-back Plain Steel Solid Strut Channel/Section Steel Parameter

Back-to-back Plain Steel Solid Strut Channel/Section Steel (Double Plain Steel Solid Strut Channel/Section Steel)
CAT#	SIZE (mm)	THICKNESS (mm)
QK3301	41*21	0.9-2.7
QK1001	41*41	0.9-2.7
Standard Channel lengths are 3 mtrs or 6 mtrs. Cut to channel lengths can be supplied on request. And specification can be customized

Qinkai Load Rating & Deflection of 41*41*2.5mm

Span (mm)	Max. Allowable Load (kg)	Deflection at Allowable Load (mm)
250	1308	0.17
500	654	0.68
750	436	1.53
1000	328	2.72
1250	261	4.25
1500	218	6.13
1750	187	8.34
2000	163	10.90
2250	145	13.80
2500	131	17.03
2750	119	20.61
3000	109	24.56
