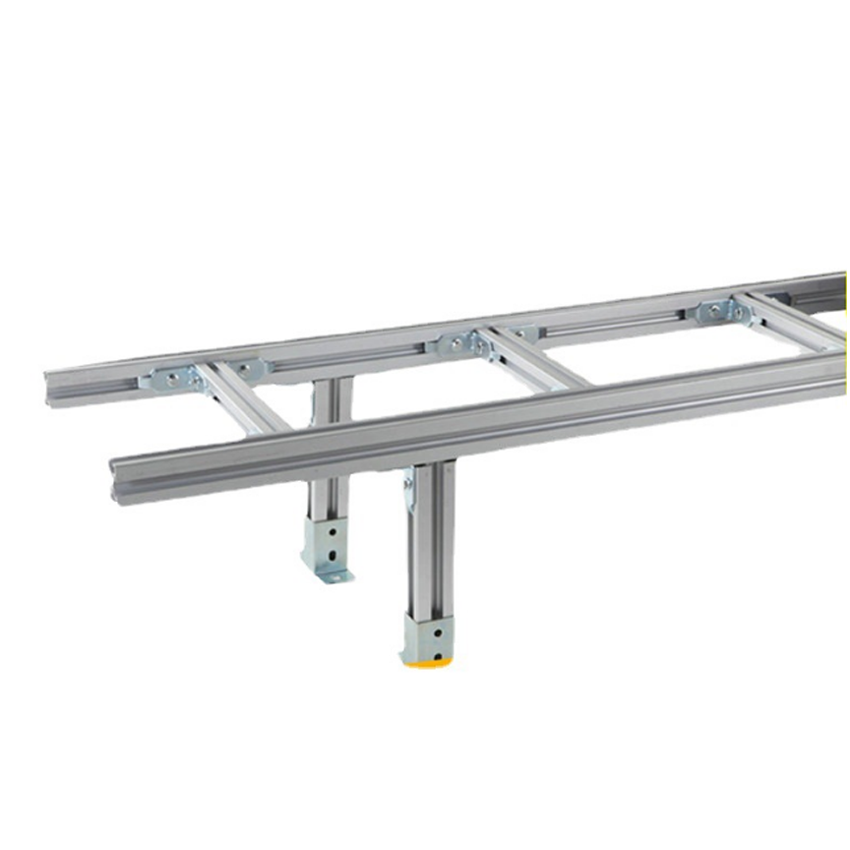

Qinkai Aluminum Cable Ladder Raceway for Data Centre
QINKAI ALUMINUM CABLE LADDER RACEWAY are designed to protect and route data center cables.
The distance of cable ladder is from 250mm to 400mm.It is flexible and innovative for installation and convenient for line inspection.
The most important thing you need to note is the amazing carrying capacity, up to 300 kilograms per meter.
If you have a list of Qinkai Aluminum Cable Ladder Raceway, please send us your inquiry
Application
The surface of aluminum alloy cable rack is fine, uniform, beautiful and generous, and the installation is flexible. The structure is easy to maintain, which is a common category of computer room cabling，The width of aluminum alloy cable rack is adjustable for single layer, double layer, multi-layer, vertical cable, horizontal cable, and any combination
Benefits
- Side rail angel steel with 5-6mm thickness, rung flat steel with 5-6mm thickness.
- Side rail U shape steel, section view size:33mm*42mm*33mm
- Rung U steel, section view size:28mm*34mm*28mm,1.5-3mm
- Wide：100mm-1000mm Length: 2000mm or 3000mm
- Application：telecommunication room, network room, data center and telecommunication base.
- For indoor use:aluminum cable ladder and steel cable ladder(with electro zinc plated treatment)
- Feature：adopt the fine quality electro zinc plated chill steel, power coated for indoor use, hot dip galvanized for outdoor use. Simple assemble and easy mounting.
Parameter
| Rung Spacing | 100mm-1000mm |
| Materials: | Aliminum |
| Surface Finishing: | Anodizing/powder coated |
| Colors: | Yellow/Blue/Grey/etc |
| Length(mm): | 1-6000mm |
| Width(mm): | Width(mm): 200-1000 |
|
Product Name |
Item No |
KG/Meter |
Remarks |
|
Aluminum Cable Ladder |
CAL200-3000-DXC32K |
3.84 |
9pcs Aluminum Bar,DXC Aluminum Girder,32k Aluminum Bar |
|
Aluminum Cable Ladder |
CAL300-3000-DXC32K |
4.09 |
9pcs Aluminum Bar,DXC Aluminum Girder,32k Aluminum Bar |
|
Aluminum Cable Ladder |
CAL200-3000-32K32K |
3.13 |
9pcs Aluminum Bar,32k Aluminum Girder,32k Aluminum Bar |
|
Aluminum Cable Ladder |
CAL300-3000-32K32K |
3.36 |
9pcs Aluminum Bar,32k Aluminum Girder,32k Aluminum Bar |
|
Aluminum Cable Ladder |
CAL200-3000-DXCDXC |
4.31 |
9pcs Aluminum Bar,DXC Aluminum Girder,DXC Aluminum Bar |
|
Aluminum Cable Ladder |
CAL300-3000-DXCDXC |
4.55 |
9pcs Aluminum Bar,DXC Aluminum Girder,DXC Aluminum Bar |
If you need know more about Qinkai Aluminum Cable Ladder Raceway . Welcome to visit our factory or send us enquiry.
Detail Image
Qinkai Aluminum Cable Ladder Raceway Package
Qinkai Aluminum Cable Ladder Raceway Process Flow
Qinkai Aluminum Cable Ladder Raceway Project
