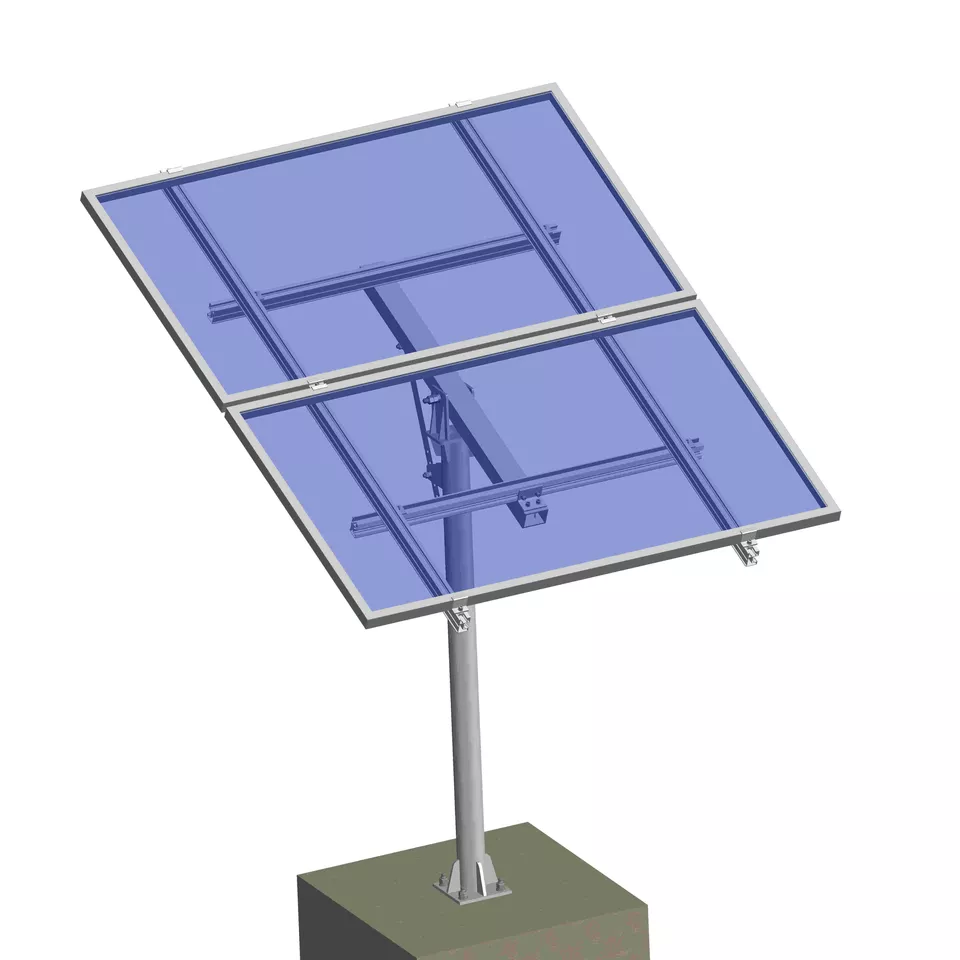

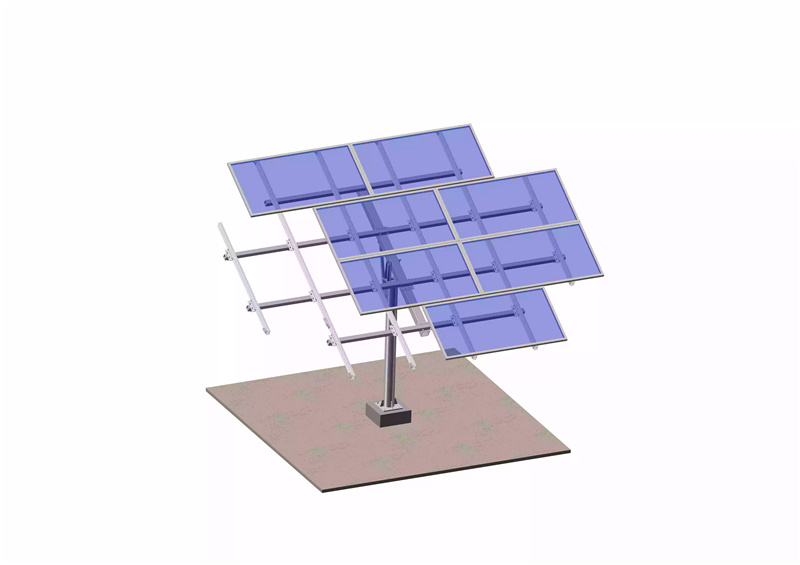

Qinkai Solar Ground Single Pole Mounting Systems
Solar Ground Mounting
Solar First Ground Screw Mounting Structure is widely applied for large solar farm, with fixed ground screw foundation or adjustable screw pile. The unique oblique spiral design can greatly ensure the stability of withstanding static load.
Technical Datas
1. Installation site: Open field ground mount
2. Foundation: Ground screw & Concrete
3. Mount tilt angle: 0-45 Degree
4. Main components: AL6005-T5
5. Accessories: Stainless steel fastening
6. Duration: More than 25 years
Application
1.Easy Installation.
The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.
2.Great Flexbilitity.
The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.
3.High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
4.Maximum Lifespan:
All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
5.Guaranteed Durability:
Wanhos Solar provides a guarantee of 10 years on the durability of all components used.
Please send us your list
Necessary info. for us to design and quote
• What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? ________Nos. in a row
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.
Parameter
|
lnstall Site |
open field |
|
Tilt Angle |
10deg-60deg |
|
Building Height |
Up to 20m |
|
Max Wind Speed |
Up to 60m/s |
|
Snow Load |
Up to1.4KN/m2 |
|
standards |
AS/NZS 1170 & DIN 1055 & Other |
|
Material |
Steel&Aluminum alloy & Stainless steel |
|
Color |
Natural |
|
Anti-corrosive |
Anodized |
|
Warranty |
Ten years warranty |
|
Duratiom |
More than 20 years |
If you need know more about Qinkai Solar Ground Single Pole Mounting Systems . Welcome to visit our factory or send us enquiry.
Detail Image
Qinkai Solar Ground Single Pole Mounting Systems Inspection
Qinkai Solar Ground Single Pole Mounting Systems Package
Qinkai Solar Ground Single Pole Mounting Systems Process Flow
Qinkai Solar Ground Single Pole Mounting Systems Project
