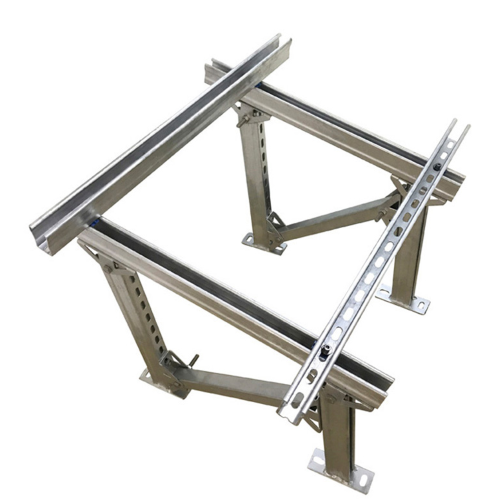

Qinkai Solar Ground Systems Steel Mounting Structure

Short Description:

solar ground mounting systems currently offers four different types: concrete based, ground screw, pile, single pole mounting brackets, which can be installed on almost any kind of ground and soil.

our solar ground mounting designs allow big spans between two structure leg group, so that it will maximum the use of the aluminum ground structure and make a most cost-effective solution for each project.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

Our product advantages1. Easy to install, maximize pre assembly, and greatly save labor and cost. The structure of track and main beam is the same, which ensures shorter delivery time.

2. Great flexibility. No matter how many solar panels are installed in residential buildings, frame photovoltaic modules can be easily deployed. The mounting accessories of the solar system are designed for almost all types of installations.

3. Excellent compatibility, designed as a universal shelf system, which can use frame modules from all popular manufacturers.

4. Excellent adaptability. The angle of the orbit is designed to maximize the use of solar energy according to your local latitude.

5. Designed according to high standards, all aluminum design, excellent durability, high corrosion resistance, ensure the maximum possible service life, and fully recyclable.

Application

Features

Suitable for different regions, such as low-cost concretes and high wind and heavy snow regions.

Ground screw foundation and concrete foundation can be acceptable

Parts have been high pre-assembly on factory to save your installation time

Simple and fast installation

High quality galvanized steel material

Please send us your list

To get a quote and design for solar ground mount project, we need to get below information:
1. Panel dimension: length, width and thickness

2. Tilt angle

3. Panel layout: how many solar panels in a column and how many solar panels in a row?

4. How many solar panels in total

5. Max wind speed on project site

6. Max snow load on project site

7. Ground clearance: the height from the bottom of solar panel to the ground?

8. Foundation: ground screw pile foundation or concrete foundation?

Parameter

Qinkai Solar Ground Systems Steel Mounting Structure parameter

Technical Information
Tilt Angle	5~60 degree
Max Wind Speed	up to42 m/s
Max Snow Load	up to 1.5KN/m²
Material	Galvanized Steel Q235 & Aluminum 6005-T5
Warranty	12 years quality warranty
