Qinkai Solar Ground Screw Mounting Systems

Short Description:

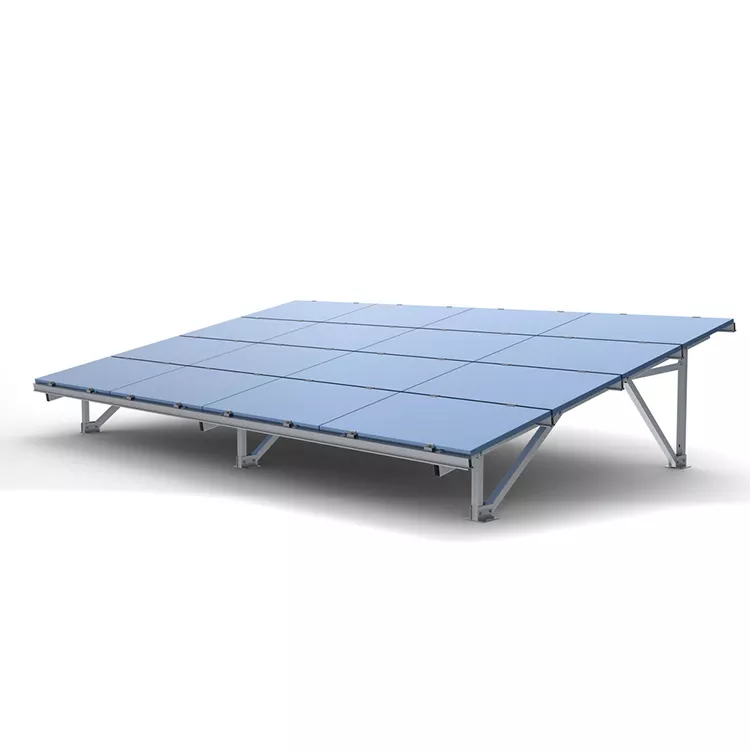

Qinkai Solar Ground Mounting System is made of aluminum to mount on concrete foundation or ground screws, Qinkai solar ground mount is suitable for both framed and thin film modules in any size. It is featured with light weight, strong structure, and recyclable materials, pre-assembled beam save your time and cost .

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

Installation Steps

1.Precast ground screw foundations.(The ground screw can be replaced by concrete block with the anchor bolt)

2.Fix the leg bases on flange type ground screws.

3. Install the pre-assembled support racks and diagonal brace with leg base.

4. Install the triangle fixing components on the rear leg.

5. Connect two rails with rail splice if the rails are not long enough.

6. Fix the rail on support rack with fixing clamp kits.

7. Fix panel on the rail at the end of panel by end clamp.

8. Fix panel on the rail in the inner part by mid clamp.

9. Well done! You have installed the ground screw mounting system successfully.

Ground Screw Mounting System designed to provide an economical and practical mounting solution for large-scale open areas. Available for both framed and frameless modules. Compatible with screwing machine in the open area easily.

Application

Features

1.High utilization of space

2.Cost Saving

3. Easy installation

4.Strong to support

5.Maintenance free

6.Quick deliver

7.Custom-designed

Necessary info. for us to design and quote

• What is your pv panels dimension?__mm Length x__mm Width x__mm Thickness
• How many panel are you going to mount? _______Nos.
• What's the tilt angle?____degree
• What is your planned pv assmebly block? N×N ?
• How is weather there,such as wind speed and snow load?
___m/s anit-wind speed and____KN/m2 snow load.

Please send us your list

Parameter

Qinkai Solar Ground Screw Mounting Systems parameter

lnstall Site	Low profile roof of open field
Tilt Angle	10deg-60deg
Building Height	Up to 20m
Max Wind Speed	Up to 60m/s
Snow Load	Up to1.4KN/m2
standards	AS/NZS 1170 & DIN 1055 & Other
Material	Aluminum alloy & Stainless steel
Color	Natural
Anti-corrosive	Anodized
Warranty	Ten years warranty
Duratiom	More than 20 years
Package	The normal package is export carton, and wooden pallet for several cartons. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
