Qinkai Solar Tin Roof Mounting Systems

Short Description:

Solar roof tilting bracket system has great flexibility for the design and planning of commercial or civil roof solar system.

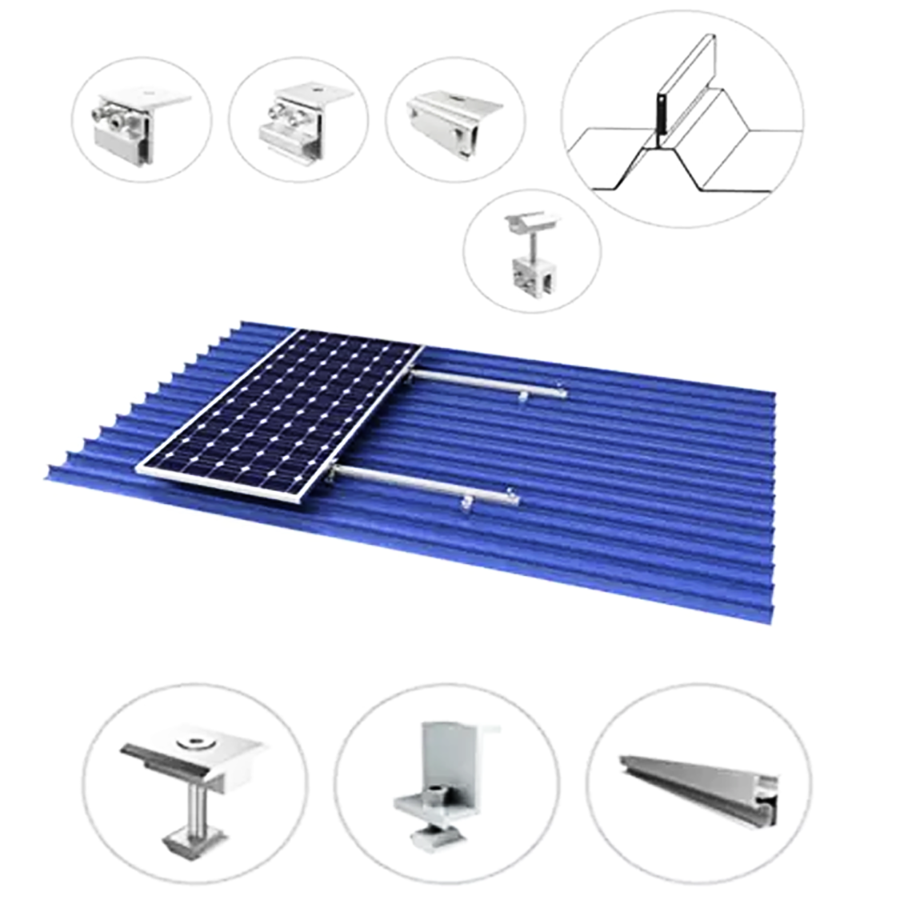

It is used for parallel installation of common framed solar panels on sloping roofs.Unique aluminum extrusion guide rail, inclined mounting parts, various card blocks and various roof hooks can be pre-installed to make the installation easy and fast, saving your labor cost and installation time.

The customized length eliminates the need for on-site welding and cutting, thus ensuring high corrosion resistance, structural strength and aesthetics from the factory to the installation site.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

Wide applicability. The grid solar energy inclined roof support system is applicable to all kinds of universal framed solar panels installed on all types of roofs in the existing market, ranging from small solar energy systems to large and even several megawatt systems.

Mostly no need drilling
• Applicable to Framed & Frameless modules
• Modules orientation accepts both Landscape & Portrait
• Every size of modules array possible
• Highly pre-assembled components ensure quick installation

Application

1. Easy installation. The inclined mounting parts can be installed from any position of aluminum alloy extrusion guide rail, and pre-installed with the height of the clamping block and hook, thus minimizing the installation time and cost.

2. High durability: with the design concept of 25 years' service life, all structural parts are high-strength stainless steel and anodized aluminum alloy to ensure the high durability of materials.

3. Withstand extreme weather. The grid solar energy inclined roof support system is designed by experienced engineers according to AS/NZS 1170 and other international common standards to withstand extreme weather conditions.The main stress components of the system are tested in various ways to ensure its structural bearing capacity.

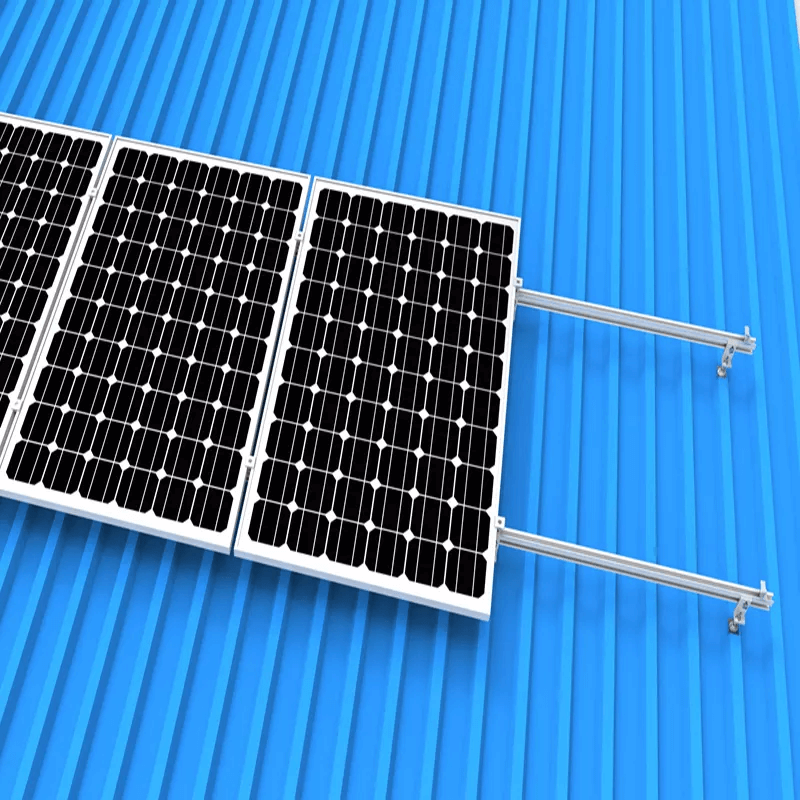

Roof rack for solar panel designs with great flexibility both for commercial and residential tin roof solar system. Innovative design, standard components and highly pre-assembled clamp make the installation simple and save your time and cost. Quality material guarantees long-term warranty for all components.

Parameter

Qinkai Solar Tin Roof Mounting Systems parameter

Installation site	Solar tin roof systems
Main material	Aluminum 6005-T5
Wind load	Up to 45m/s or others
Snow load	Up to 1.5kn/m2 or others
Applicable module	Framed or frameless panels
Tilt angle	Parallel to the roof
Fasten material	SUS 304 or Aluminum or hot galvanized steel Q235
FOB port	Shanghai,Tianjin,Guangzhou, China
Payment terms	TT, LC at sight
