Qinkai Custom Solar Panel Roof Tiles Photovoltaic Pitched Tile Roof Mounting Bracket Kit

Short Description:

It is designed as a modular unit assembly system using high-quality materials.

This allows the installer to install any module in almost any installation situation or configuration.

The assembly is easy to install and can be used for various tile roof types.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

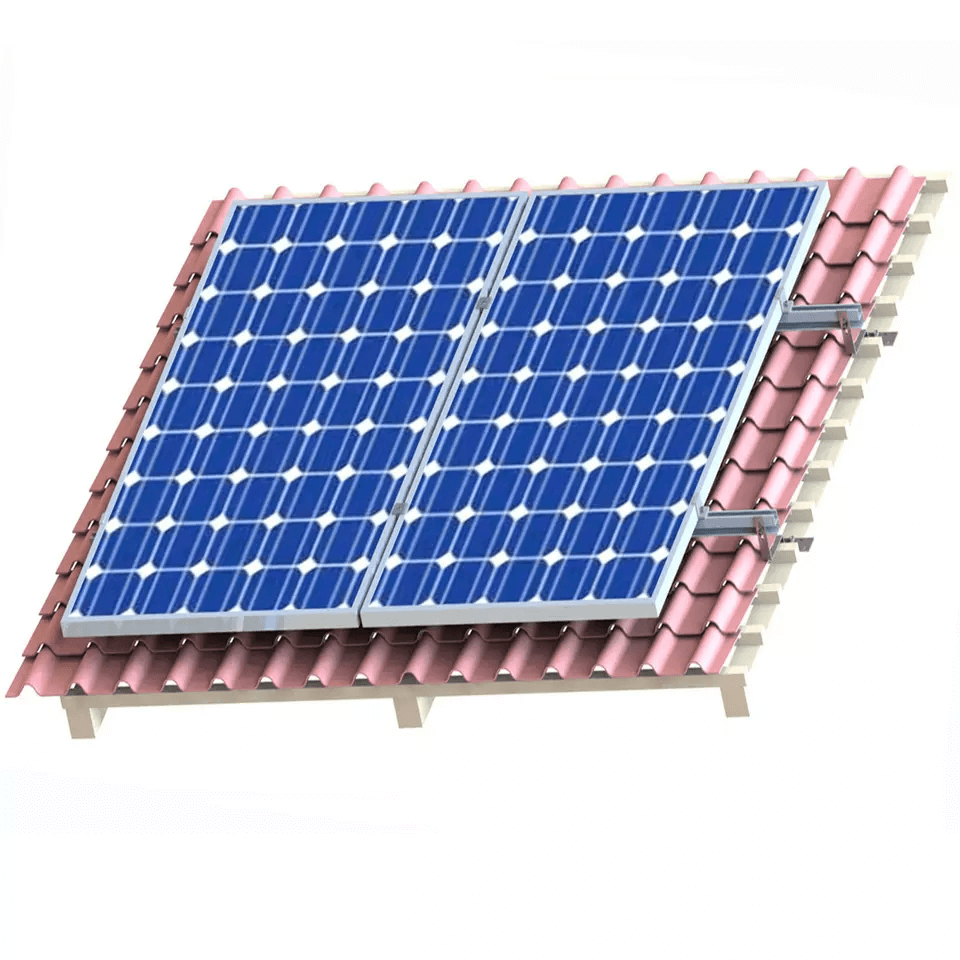

We are now offering tiled roof packages in 1-panel and 2-panel packages.
1.We have a 2-panel package that includes all the bracket material needed for 2 panels: 2 x 2400 mm rails + 1 bag of accessories (including black rail splice+30-40mm black adjustable mid clamp,+30-40mm black adjustable end clamp, + earthing clip +grounding lug +S shape cable clamp +black rail cap ,etc.) + 6 hooks.
2.We have a 1-panel package that includes all the bracket material needed for 1 panels: 2 x 1250 mm rails + 1 bag of accessories (including black rail splice+30-40mm black adjustable mid clamp,+30-40mm black adjustable end clamp, + earthing clip +grounding lug +S shape cable clamp +black rail cap ,etc.) + 4 hooks

Application

Pitched tile roof hooks are used to support the rail. They have adjustable and fixed type for your choices. Different type roof hook can meet different tile roofs.

Varied roof hooks or brackets with tilt-in modules ensure easy and quick installation.

Advantage as follow:

1. Tile Hook: several typesaccording to your tile direction.

2. Simple Components: Only 3 components !

3. Most Parts are preassembled: save 50% labor cost

4. Lower and Competitive price.

5. Rust-resistance.

Please send us your list

In order to help you get the right system, please offer the following necessary info:

1. Dimension of your solar panels;

2. Quantity of your solar panels;

3. Any requirements about wind load and snow load?

4. Array of solar panel

5. Layout of solar panel

6. Installation tilt

7. Ground clearance

8. Ground foundation

Parameter

Qinkai Solar panel roof tile photovoltaic support system parameter

Product Parameter
Product Name	Solar Pitched Tile Roof Mounting
Installation Site	Pitched Tile Roof
Material	Aluminum 6005-T5 & Stainless Steel 304
Color	Silver or Customized
Wind Speed	60m/s
Snow Load	1.4KN/m2
Max. Building Height	Up To 65Ft(22M), Customized Available
Standard	AS/NZS 1170; JIS C 8955:2011
Warranty	10 Years
Service Life	25 Years
Components Parts	Mid Clamp; End Clamp; Leg Base; Support Rack; Beam; Rail
Advantages	Easy Installation; Safety And Reliability; 10 -Year Warranty
Our Service	OEM / ODM
