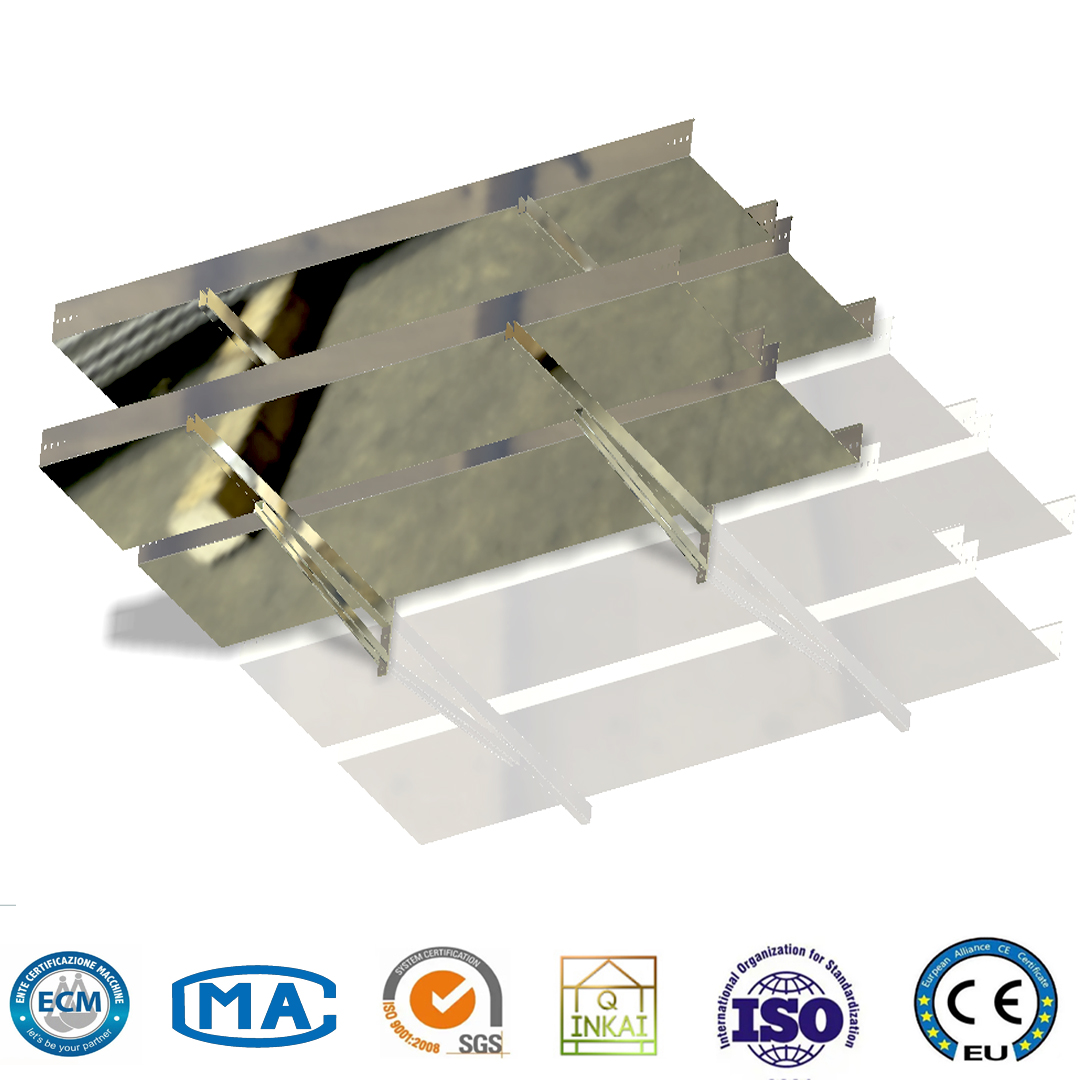

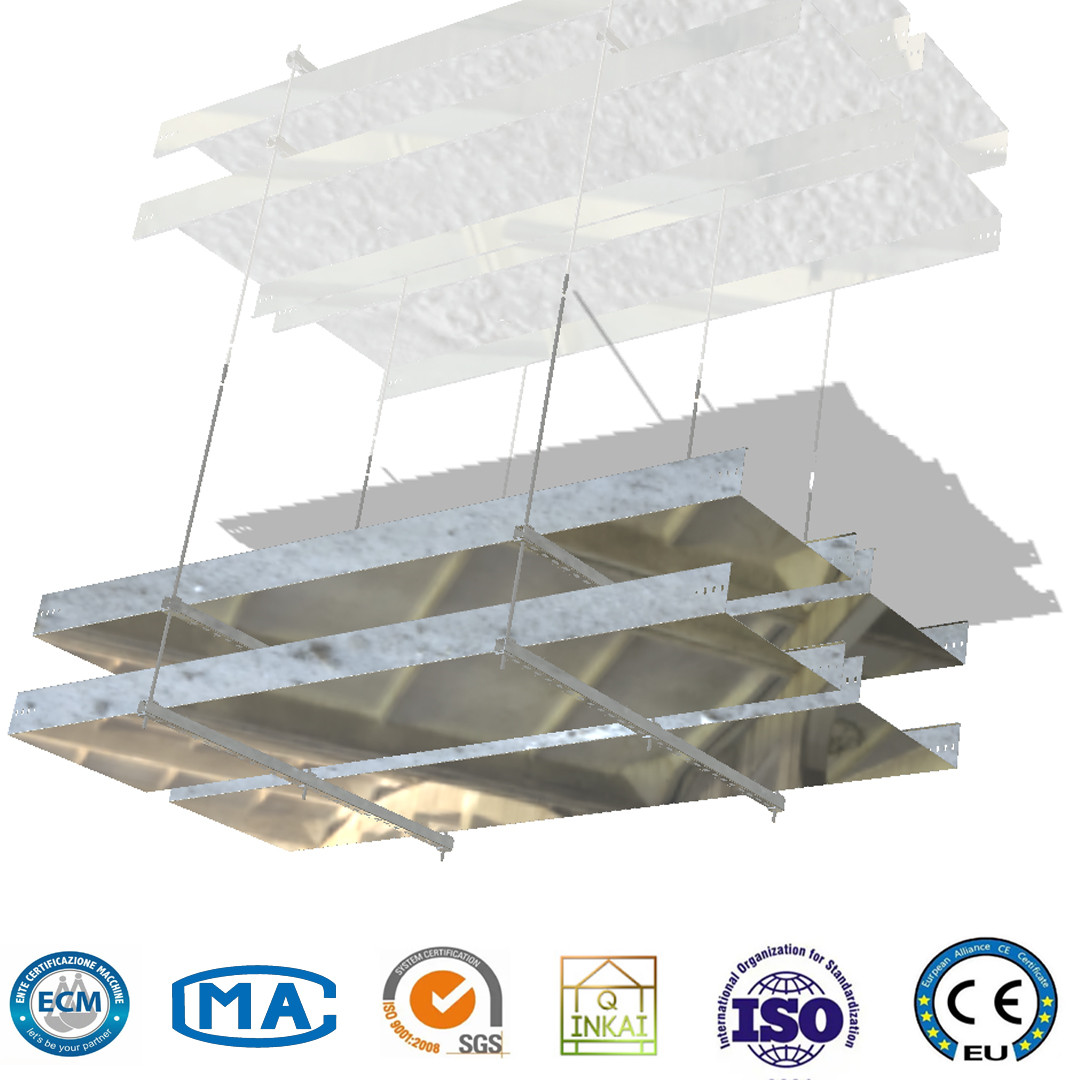

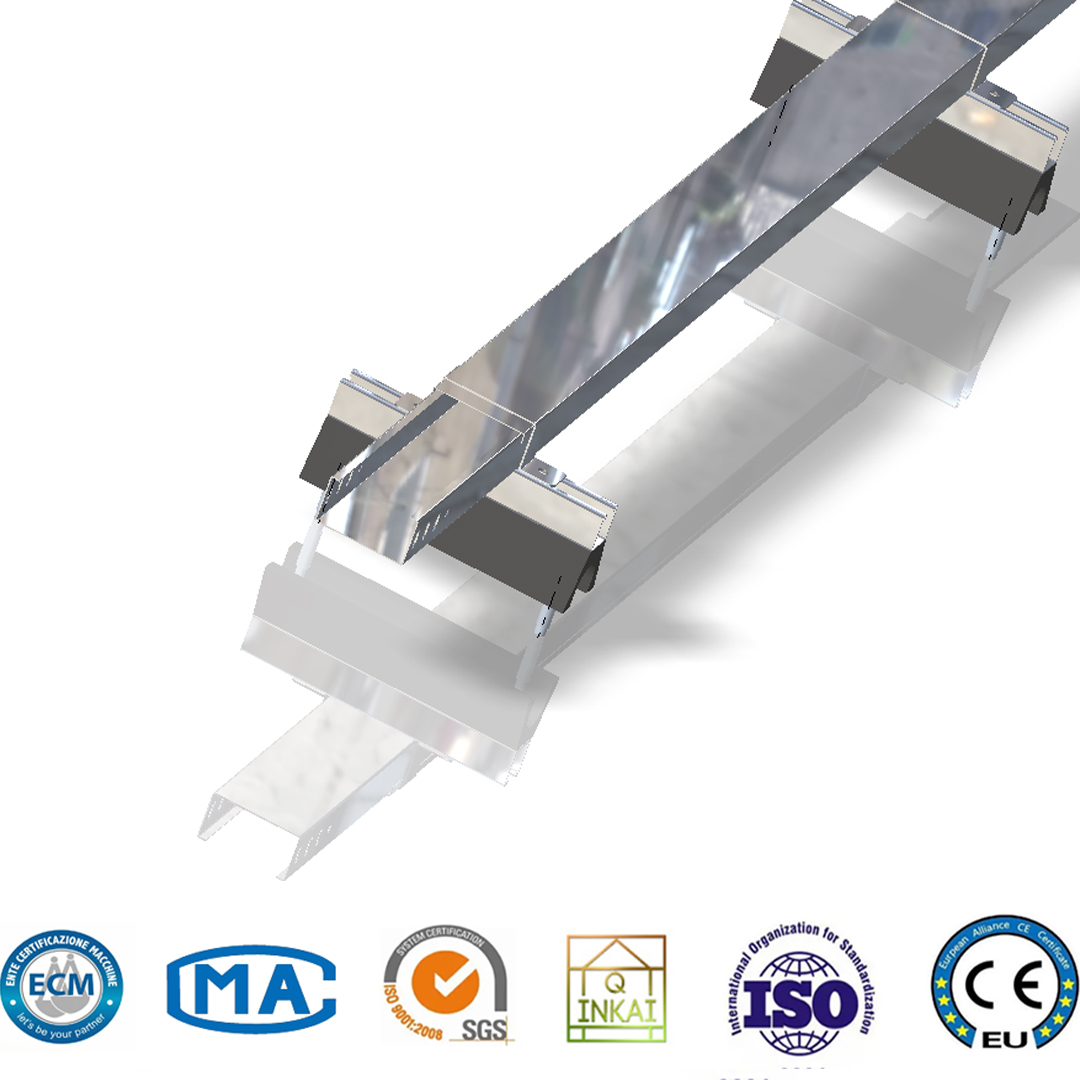

Qinkai cable trunking systems with good laod capacity
Qinkai cable trunking system is an ideal solution for instrument cable and cable laying in industrial or commercial cable management applications, which helps eliminate the conduit or ladder required for cable and wire connection, distribution and termination
Qinkai cable trunking system allows compression or connection of cables and heat dissipation.
Continuous Qinkai cable trunking system provides continuous cable support.
We have passed the ISO 9001 quality management system certification and CE certification (EU)
If you have list, please send Qinkai about your inqiury list
The cable trunking can maintain all types of cables, such as:
1. wire of high voltage.
2. cable of power frequency.
3. cable of Power.
4. cable of Telecommunication .
Qinkai cable trunking advantage:
·Install method is flexible and easy with many kinds of accessories .
·when cable insulation ,no damaging .
·it let cable dustproof and moistureproof with cover.
·Change size or materials is possible.
·Long service life.
Parameter
|
Cable Trunking Product Parameter |
|
| Product type |
Cable Trunking |
| Materia |
Q235B, Q195, SS304,SS316 ,AL6063-T3,AL6063-T5,FRP |
| Surface Treatment |
Pre-Gal/Electro-Gal/Hot dipped galvanized/Powder coated/Polishing/Satt/Matt/anodizing/etc |
| Packing method |
1.In bundle |
|
2.Wrapping Film,plastic tape, Plywood pallet. |
|
|
3.Plywood Pallets is optional for wire basket cable tray |
|
|
4.Carton for accessories |
|
|
5.As per requirements |
|
| Width |
50-1200mm |
| Side rail height |
25-300mm |
| Length |
2000mm,3000-6000mm or Customization |
| Thickness |
0.6-3mm,but if you need HDG cable tray,1.30-3mm thickness is better |
| Steel Thickness |
1.00mm-50*25mm,75*75mm |
| (Recommend) |
1.2mm-100*50mm,150*100mm |
|
1.5mm-200*100mm,300*150mm,400*150mm,500*150mm |
|
|
2.0mm-600*200mm,700*200mm |
|
|
2.5mm-800*200mm |
|
|
3.0mm-1000*250mm |
|
| Color |
Red,Blue,Yellow,Green,Black,White,Grey,As customer requirements |
| Accept |
OEM/ODM service, accept trial orders,welcome you try the samples |
| Certification |
ISO9001/CE/If you need other certificate it isavaiblable |
| Used |
Qinkai products include wire mesh cable tray, perforated cable tray, solid flat bottom cable tray, cable trough, cable ladder, wire trough, pillar trough and accessories, which can be widely used in buildings, energy, power and factories Used in wiring system,cable management systems,hoisting system,construction industry and so on |
| Loading Test |
Our cable trunking meet the standards requirements of IEC61537 and NEMA VE-1 |
|
Non standard specifications are availabe according to customers' requirement |
|
If you need know more about Qinkai cable trunking. Welcome to visit our factory or send us enquiry.
Detail Image
Qinkai Cable Trunking System Inspection
Qinkai Cable Trunking System Package
Qinkai Cable Trunking System Process Flow
Qinkai Cable Trunking System Project
