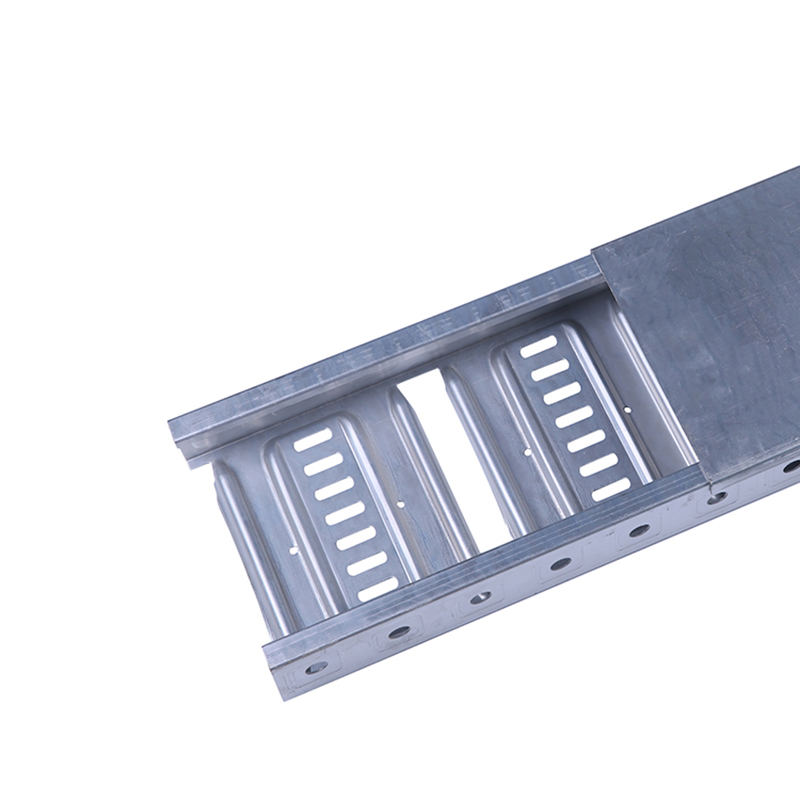

Qinkai T3 Ladder Type Cable Tray Australia Hot Sale

Short Description:

T3 Ladder Tray System is designed for trapeze supported or surface mounted cable management and is ideally suited to small, medium and large size cables such as TPS, data comms, Mains & sub mains.

T3 offers full integration saving the installer from having to carrying two ranges of accessories.

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

Load and Deflection data is derivd from tests performed in a NATAcertified

testing environment in accordance to NEMA VE1-2009STANDARDS.

ALL Ladders exceed the class designation that has been applied to the product.

Load data is based on single spans resulting in worst case scenaril.Deflections

listed in our table are based on continuous spans,single span installation will

result in increased deflection,for single spans multiply the corresponding

deflection by 2.5 For further information regarding Nema VE 1-2009 Standards

Safety Factor 1.5 over collapse load

Application

Qinkai ET3 cable trays are capable of maintaining all types of cabling, such as:
power cables, control cables, compensation cables, shielded cables, high-temperature cables, computer cables, signal cables, coaxial cables, fire-resistant cables, marine cables, mining cables, aluminum alloy cables, etc

Benefits

The ET3 cable tray provides premium performance for commercial and light industrial electrical projects.

The tray offers a 43mm cable laying depth, with widths ranging from 150-600mm, and standard lengths of 3m.

Strong, versatile and easy to install, its excellent performance characteristics combined with a visually appealing profile has made it the highest regarded tray product in the electrical industry. For general use inside, with a clean looking finish, the tray is offered in pre-galvanised steel, however for extra corrosion protection if it is exposed to the elements, hot dip galvanised ET3 cable trays are available. Aluminium options are available by special order.

The ET3 is also complemented by a full range of accessories to enable fast on site fabrication of tees, risers, bends and crosses.

Parameter

Qinkai ET3 cable tray parameter

Ordering Code	Cable Laying Width W (mm)	Cable Laying Depth (mm)	Overall Width (mm)	Side Wall Height (mm)
T3150	150	43	168	50
T3300	300	43	318	50
T3450	450	43	468	50
T3600	600	43	618	50
