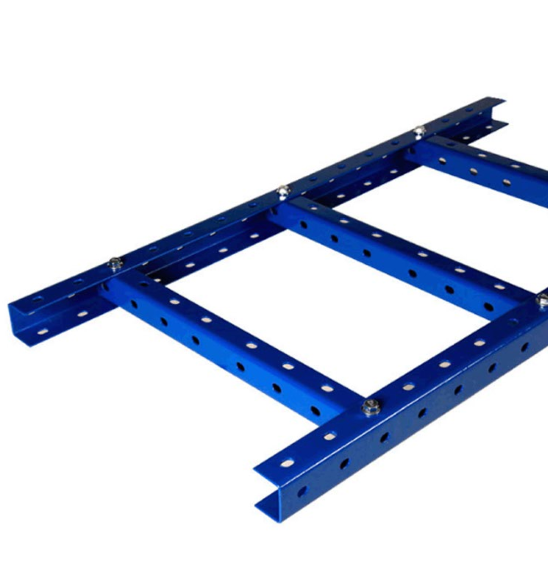

Qinkai U Channel Cable Ladder for Data Centre

Short Description:

U channel cable ladders are made from steel, wmcn is usedin

data center communication room. II has following features:

1.Lower ccst

2.Easy for installation

3.Loading capacity can be up to 200KG permeter

4.Powder coating in different colors or HDG

5.Ladder’s Width from 200mm to1000mm

6.2.5 meters perlength

Send email to us Download catalog page

Product Detail

Customer Service

Material & Finish &Package Available

Factory Advantages

Product Tags

These Cable Ladder are designed to protect and route cables in the data centers.

The rung spacing of cable ladder is available in 250mm-400mm, as an opening system like wire mesh cable tray,it's also good for flexible and innovative installation,easy line check.

The most significant point you need to notice is the amazing loading capacity,up to 300KG per meter.

If you have a list of the cable ladder, please send us your inquiry

Application

Qinkai U channel cable tray can be maintained mainly for the cables in the machine room,

such as1. Serial port cables Baidu Encyclopedia2. Mini SAS HD cable3. AOC cable - active cable4. 100G QSFP28 cable5. 25G SFP28 cable6. FDR cable7. MPO-4 * DLC optical fiber8. Optical fiber jumper

Benefits

The use of Qinkai u channel cable tray can well protect the use of cables and optical fibers in special environments.

For example, in the communication room with high data concurrency, it is required that cables do not interfere with each other.The u channel cable tray can protect the cables well from the heat

Parameter

Qinkai U channel cable tray parameter

Rung Spacing	250mm-400mm
Materials:	U-strut channel
Surface Finishing:	EZ/HDG/PC
Colors:	Blue/Grey
Length(mm):	2500
Width(mm):	Width(mm): 200-1000
Loading Capacity	Above 300KG per meter
Feature:	1. Easy and fast installations
	2. Strong loading capacity,
	3. Open system
	4. Get popular in data centers.

package data details

Product Name	Item No	KG/Meter	Remarks
U-Strut Cable Ladder	CU200-2500-2-EZ	9.7	2.5meter/pc.with 10 pcs U Channel Bar. 41mm31mm2mm
U-Strut Cable Ladder	CU300-2500-2-EZ	11	2.5meter/pc.with 10 pcs U Channel Bar. 41mm31mm2mm
U-Strut Cable Ladder	CU200-2500-2-HDG	9.7	2.5meter/pc.with 10 pcs U Channel Bar. 41mm31mm2mm
U-Strut Cable Ladder	CU300-2500-2-HDG	11	2.5meter/pc.with 10 pcs U Channel Bar. 41mm31mm2mm
U-Strut Cable Ladder	CU200-2500-2-PC	5.6	2.5meter/pc.with 10 pcs U Channel Bar. 41mm31mm2mm
U-Strut Cable Ladder	CU300-2500-2-PC	6	2.5meter/pc.with 10 pcs U Channel Bar. 41mm31mm2mm
